    Blue Coated Tungsten Carbide End Mill , Carbide Milling Cutter For Machine Cutting

    Ask Lasest Price
    Brand Name : KTS
    Model Number : CT-36
    Certification : ISO9001-2008
    Price : 1USD-20USD
    Payment Terms : T/T, Western Union
    Supply Ability : 10000PCS PER MONTH
    Delivery Time : 1-3WEEKS
    • Product Details
    • Company Profile

    Blue Coated Tungsten Carbide End Mill , Carbide Milling Cutter For Machine Cutting

    Blue Coated Carbide End Mill For Machine Cutting

    Specification:

    Name: END MILLS

    Material: 100% raw material carbide
    Metrial: Tungsten Carbide
    Coating: HRC45° HRC50° HRC55° HRC60° HRC65°
    Flute: 1Flute 2Flute 3Flute 4Flute 5Flute End Mills

    DIAMETER: 4, 6, 8, 10, 12, 14, 16mm are available, the hot sale sizes mills are diameter less than 12mm.
    CUSTOMIZE: OEM service is available.
    SAMPLE SERVICE: Free samples but shipping fee

    About Coatings:

    Endmill Grade
    Coating Name
    Color
    Hv
    μm
    Friction
    The MaxºC
    Application
    HRC 45° coating
    AlTiN
    black
    3300
    0.6
    0.7
    850ºC
    Suitable for General Steel
    HRC 50° coating
    AlTiN
    black
    3300
    0.6
    0.7
    850ºC
    Suitable for General Steel
    HRC 55° coating
    TiSiAlN
    bronzed
    3400
    0.5
    0.7
    900ºC
    General Steel,cast cast iron
    HRC 60° coating
    AlCrSiN
    black
    4000
    0.4
    0.35
    1100ºC
    High Hard Material, steel, cast iron, etc
    HRC 65° coating
    nACo 3 Blue
    blue
    4500
    0.4
    0.45
    1200ºC
    Titanium Alloy, High-temperature Alloy,material, etc
    HSS
    nACo 3 Blue
    Other
    4500
    0.4
    0.45
    1200ºC
    Stainless steel
    Free Sample Test : Contact Us For Inquiry

    Product Catalog:

    Blue Coated Tungsten Carbide End Mill , Carbide Milling Cutter For Machine Cutting

    Product Sizes:

    D1 (Diameter of cut)
    d (Shank Diameter)
    L (Flute Length)
    L1 (Overall Length)
    1mm
    4mm
    3mm
    50mm
    1.5mm
    4mm
    4mm
    2mm
    4mm
    6mm
    2.5mm
    4mm
    8mm
    3mm
    3mm
    8mm
    3mm
    4mm
    8mm
    3.5mm
    4mm
    11mm
    4mm
    4mm
    11mm
    1mm
    6mm
    3mm
    1.5mm
    6mm
    4mm
    2mm
    6mm
    6mm
    2.5mm
    6mm
    8mm
    3mm
    6mm
    8mm
    3.5mm
    6mm
    11mm
    4mm
    6mm
    11mm
    4.5mm
    6mm
    13mm
    5mm
    5mm
    13mm
    5mm
    6mm
    13mm
    6mm
    6mm
    15mm
    7mm
    8mm
    20mm
    8mm
    8mm
    20mm
    9mm
    10mm
    25mm
    75mm
    10mm
    10mm
    25mm
    12mm
    12mm
    30mm
    14mm
    14mm
    45mm
    100mm
    16mm
    16mm
    45mm
    18mm
    18mm
    45mm
    20mm
    20mm
    45mm

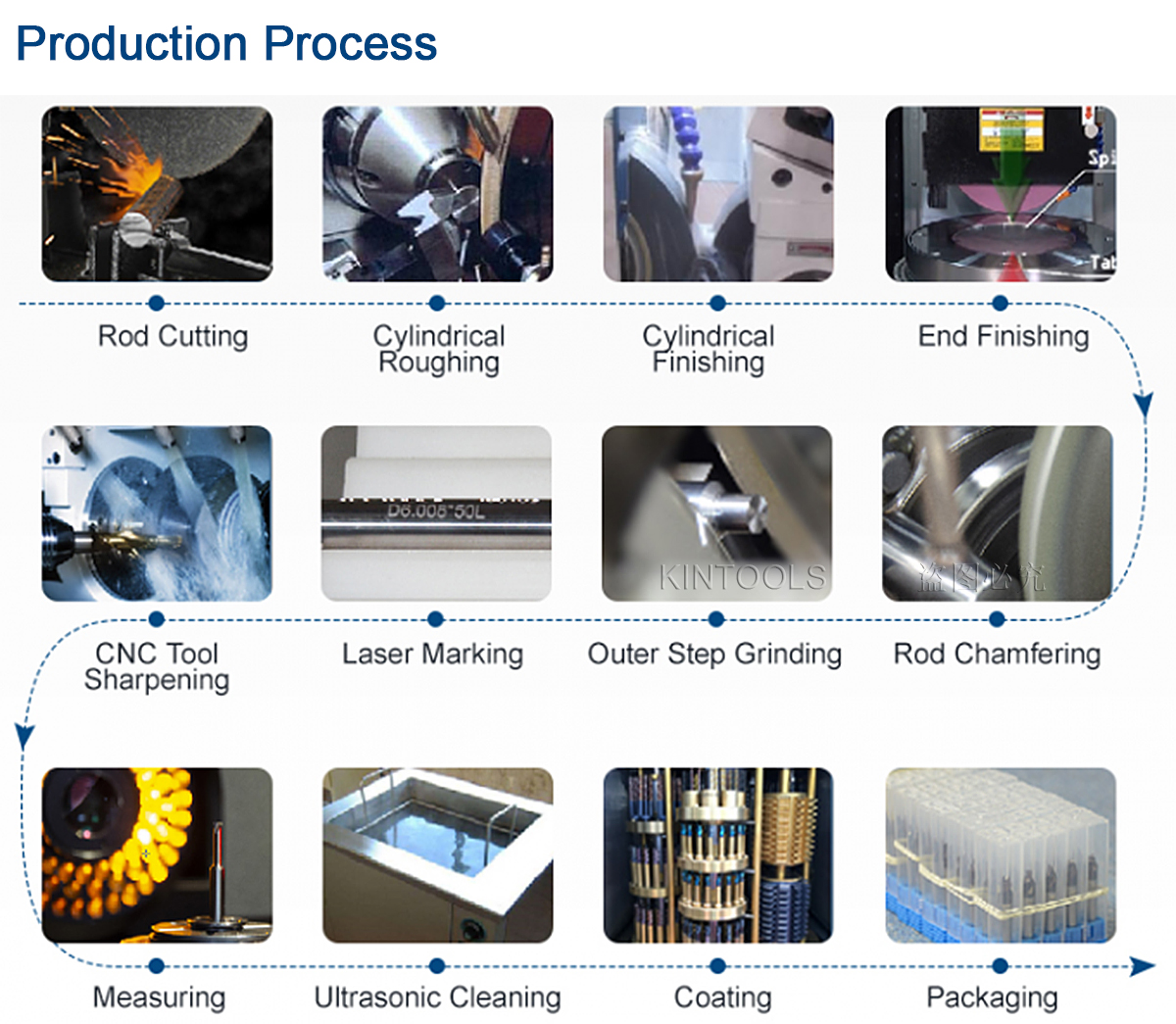

    Production Process:

    Blue Coated Tungsten Carbide End Mill , Carbide Milling Cutter For Machine Cutting

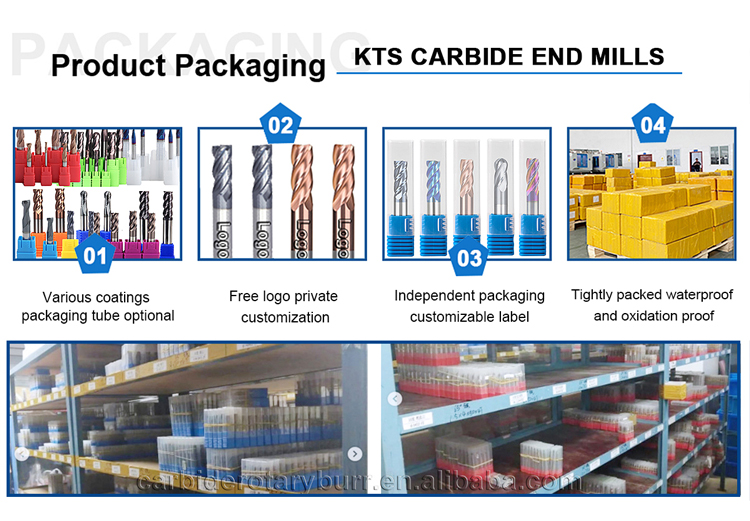

    Package & Shipping:

    Blue Coated Tungsten Carbide End Mill , Carbide Milling Cutter For Machine Cutting

    Our Advantages:
    Suitable for finishing,can achieve the mirror effect.
    coating increase surface gloss,and prolonging life.
    100% quality guarantee (ISO9001)
    Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
    100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.

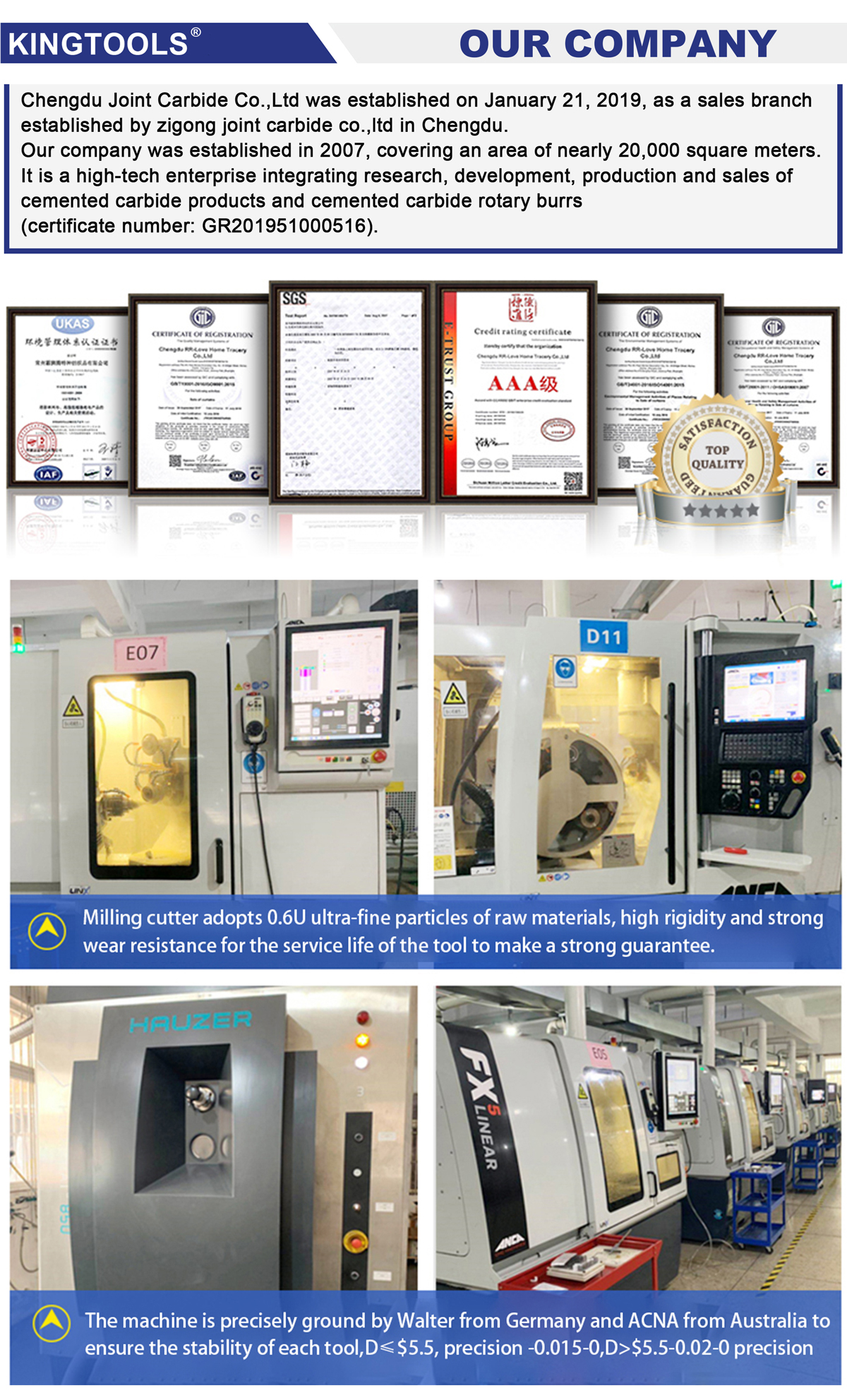

    Our Company:
