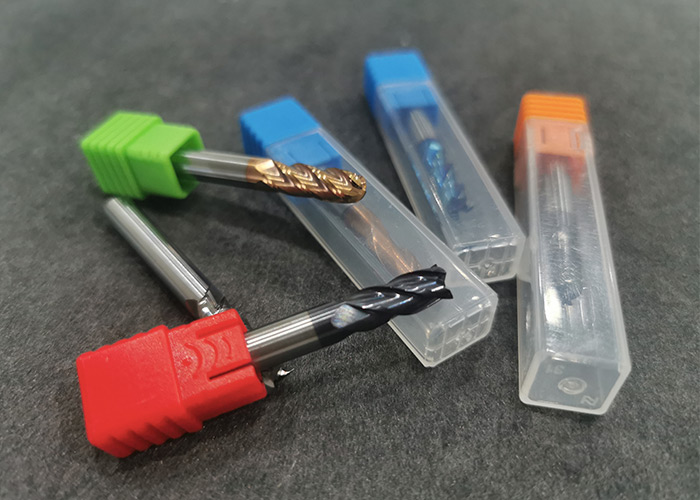

1/2/3/4 Flute Carbide End Mill Grinding Milling Cutter Industry Cutters

End Mill Grinding Milling Cutter Industry Cutters

Related information

To understand the milling cutter, you must first understand the milling knowledge

When optimizing the milling effect, the blade of the milling cutter is another important factor. In any milling, if there are more than one blades participating in the cutting at the same time, it is an advantage, but too many blades participating in the cutting at the same time are the disadvantages. It is impossible for a cutting edge to cut at the same time. The required power is related to the number of cutting edges participating in the cutting. In terms of chip formation process, cutting edge load and processing results, the position of the milling cutter relative to the workpiece plays an important role. When face milling, use a milling cutter that is about 30% larger than the cutting width and position the milling cutter close to the center of the workpiece, then the chip thickness does not change much. The chip thickness during cutting is slightly thinner than when cutting at the center.
In order to ensure that a sufficiently high average chip thickness / feed per tooth is used, the number of cutter teeth suitable for this process must be correctly determined. The pitch of the cutter is the distance between the effective cutting edges. According to this value, the milling cutter can be divided into three types-dense tooth milling cutter, sparse tooth milling cutter, special dense tooth milling cutter.
Also related to the thickness of the milled chips is the main angle of the face milling cutter. The main angle is the angle between the main cutting edge of the insert and the surface of the workpiece. The main angles are 45 degrees, 90 degrees and the circular blade. The direction change will change greatly with the difference of the main declination angle: the milling cutter with a main declination angle of 90 degrees mainly produces radial force, which acts in the feed direction, which means that the surface to be processed will not bear too much pressure It is more reliable for workpieces with weak milling structure.
The milling cutter with a main declination angle of 45 degrees has roughly the same radial cutting force and axial direction, so the pressure generated is relatively balanced, and the power requirements of the machine tool are also relatively low. It is especially suitable for short chip materials that produce chipping chips during milling. Artifacts.
The milling cutter with round insert means that the main declination angle changes continuously from 0 to 90 degrees, which mainly depends on the cutting depth. The cutting edge strength of this type of blade is very high. Because the chips generated along the long cutting edge are relatively thin, it is suitable for large feeds. The direction of the cutting force in the radial direction of the blade is constantly changing, and the pressure generated during the processing It will depend on the depth of cut. The development of the geometric geometry of modern blades has the advantages of round cutting blades with a smooth cutting effect, low power requirements for the machine tool, and good stability. It is no longer an effective rough milling cutter, and is widely used in face milling and end milling.

Joint carbide co.,ltd was established on January 21, 2019, as a sales branch established by Zigong joint carbide co.,ltd in Chengdu.Our company covers 20,000 square meters was a high-tech enterprise integrating research, development, production and sales of cemented carbide products and cemented carbide rotary burrs，carbide tire studs，carbide repair tire stud，carbide particles & composite welding rods.

The company is committed to providing high-precision, high-speed and efficient metal grinding solutions and services for the machinery manufacturing industry. The company introduced the most advanced international five-axis five-linkage CNC tool grinder, three-coordinate tool detector and other equipment from Germany. The aim is to produce high-quality, internationally competitive products using internationally advanced equipment. At present, our company has become the largest rotary file production base in the country, with a mature R&D team and management team in China, and a stable supply chain.

As a metal cutting tool, the rotary file has been exported to Europe, North America, South America and a small number of Southeast Asian countries.A few days ago, the company has completed the accumulation of various infrastructure and technology research and development. Since 2020, our company has added 200 five-axis and five-linkage rotary grinders. By 2023, our company will invest a total of 400 five-axis and five-linkage rotary grinders. Grinding machine (total value 150 million yuan). By then, our company will become the world's largest supply base for rotary files.We have the world's advanced raw material cemented carbide formula technology, the most optimized advanced manufacturing process, and the largest-scale production equipment.
