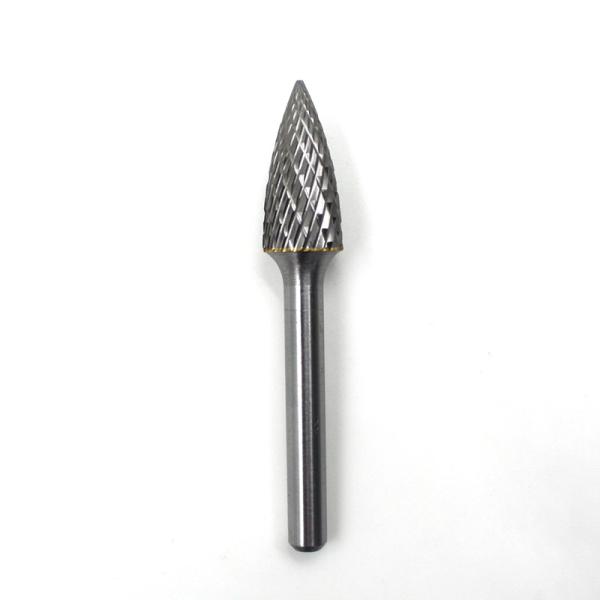

Polished Tools Carbide Rotary Burrs Tree Pointed Carbide Burr Die
Grinder Bits
Tungsten Carbide Rotary Burrs is a new tape milling cutter with
hign effciency,
instead of granding wheel burr with handle. It can cut and process
various kinds of metal(including hardened steel)
finish machining of all kinds of metal mold cavities after quenched.
Chanmfering angles,circular beads and fluting.
Polishing impeller channels, fine grinding holes on work pieces.
Carving arts crafts of metal and nonmetal, Etc.
| Shape&code | Cut Dia | Cut Length | Shank Dia | Shank length | Total length | Type |
| D1 | L1 | D2 | L2 |
| G0313M03-45 | 3 | 13 | 3 | 38 | 50 | Brazed |
| G0618M06-45 | 6 | 18 | 6 | 45 | 63 | Brazed |
| G0820M06-45 | 8 | 20 | 6 | 45 | 65 | Brazed |
| G1020M06-45 | 10 | 20 | 6 | 45 | 65 | Brazed |
| G1225M06-45 | 12 | 25 | 6 | 45 | 70 | Brazed |
| G1425M06-45 | 14 | 25 | 6 | 45 | 70 | Brazed |
| G1625M06-45 | 16 | 25 | 6 | 45 | 70 | Brazed |
Performance
Carbide Rotary Files/Tungsten Carbide Burrs
User Safety Tips
. When carbide rotary burrs are used in the wind-driven or electric
tools ,we must clamping tool,and speed is allowed generally
6000-40000 r / min,
. Cutting should be directed to move from right to left uniformity
can not be the same as using the grinding wheel to reciprocating
cutting;
be careful not to too much force (pressure is generally not more
than 4 kg).User Safety Tips
1, Used for finishing the surfaces of metal and non-metal
2, Removing the burrs of casting, forging and the welding spatter
on the weld assemblies
3, Chamfering angle, circular bead or flute on the mechanical parts
4, Chamfering or burring the pipes.
5, Polishing the impeller channel
6, Grinding the hole for accurate shape
Sets for carbide cutters.
8 pcs in aluminum sets
8 pcs in plastic sets
The items can be selectable according to client demand.
