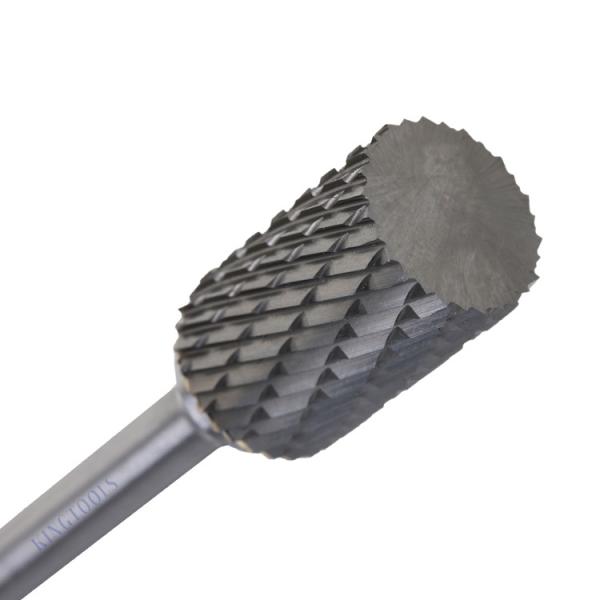

Silver Cylinder Shape Tungsten Carbide Burrs For Grinding, Cutting
And Polishing High Quality
Carbide rotary burr, also known as cemented carbide high-speed
assorted milling cutter, cemented carbide mold milling cutter,
etc., used with high-speed electric grinder or pneumatic tool.
Technical date
S.N. | MATERIAL |
1a | Steel |
1b | Hard steels |
2 | Stainless steel |
3 | Cast iron |
4 | Titanium |
5 | Nickel |
6 | Copper/Copper alloys |
7 | Aluminum |
8 | Plastics |
9 | Cement |
Guide to running speeds
mat nr. MAX RPM | 3mm/0.123" 90,000 | 6mm/0.250" 50,000 | 10mm/0.375" 40,000 | 12mm/0.500" 35,000 | 16mm/0.625' 25,000 |
1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
Advantage
1. It can process metals such as cast iron, cast steel, carbon
steel, alloy steel, stainless steel, copper, aluminum, and
non-metals such as marble, jade, and bone. Processing hardness can
reach HRA≥85.
2. Basically, it can replace the small grinding wheel with handle,
and there is no dust pollution.
3. High production efficiency. The processing efficiency is more
than ten times higher than that of manual files, and nearly ten
times higher than that of small grinding wheels with handles.
4. Good processing quality and high finish. It can process a
variety of high-precision mold cavities.
5. Long service life. The durability is ten times higher than that
of high-speed steel cutting tools, and more than 200 times higher
than that of small grinding wheels.
6. Easy to master, simple to use, safe and reliable.
7. The comprehensive processing cost can be reduced dozens of
times.
Features available across the range include:
Shake
- Toughened and hardened steel shanks (above 6mm)
- Provides rigidity and strength
- Prevents bending and reduces vibrations, resulting in longer tool
life
- Ground to h6 (carbide) and h7 (steel) for improved holding
Ball Nose Geometry
- Skip flute grinding
- Increased strength at the centre
- Reduced chance of swarf congestion and chipping
- Improved cutting action closer to the centre
Brazing
- Special brazing elements provide excellent braze strength
- Excellent impact strength able to withstand high forces
- Able to withstand higher temperatures without failing
We are committed to being the leading manufacturer and supplier of
carbide burs in the world. Through continuous development of new
and innovative products and services, using state-of-the-art
technology and skilled, motivated people, we strive to provide you
with cost-effective solutions and the support that you need to
increase your competitive advantage.
