    4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters

    Ask Lasest Price
    Brand Name : KINGTOOLS
    Model Number : HRC45° 55° 65° End Mill
    Certification : ISO 9001
    Price : $1-20
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 20000PCS PER MONTH
    Delivery Time : 7-15
    • Product Details
    • Company Profile

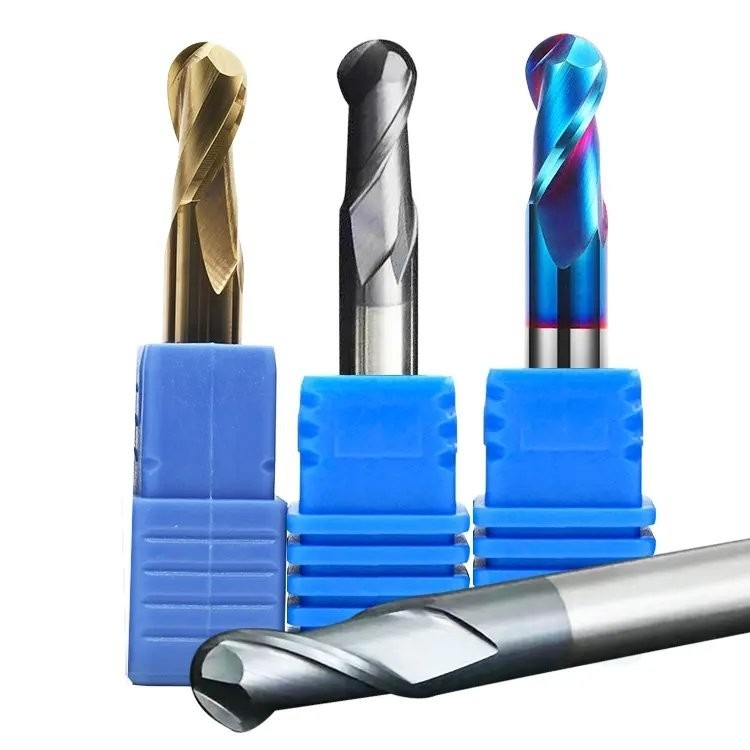

    4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters

    OEM 4 6 8 mm CNC Ball Nose HRC55 coating End Mills Tungsten Carbide End Mill

    4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters

    Product ​Specifications:

    Product Name
    Carbide Ball Nose End Mills
    Material
    100% New Raw Material Carbide
    Flute
    1 / 2 / 4 / 6 /7 /8 /9 /12 Flutes
    HRC
    45 / 55 / 58 / 60 / 65 /70
    Customized
    Our factory supports Size, Coating, Shape, Logo, Sample Test etc. customization.
    Coating Thickness
    2um-4um
    Shank Diameter
    1mm-20mm
    Overall Length
    50mm-200mm
    Application
    General-purpose operation Slotting, Drilling, Profiling
    Working Machine
    CNC (computer numeric controlled) tool and cutter grinder machines
    Work-piece material
    Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze etc.

    About Coatings:

    Endmill Grade
    Coating Name
    Color
    Hv
    μm
    Friction
    The MaxºC
    Application
    HRC 45° coating
    AlTiN
    black
    3300
    0.6
    0.7
    850ºC
    Suitable for General Steel
    HRC 50° coating
    AlTiN
    black
    3300
    0.6
    0.7
    850ºC
    Suitable for General Steel
    HRC 55° coating
    TiSiAlN
    bronzed
    3400
    0.5
    0.7
    900ºC
    General Steel,cast cast iron
    HRC 60° coating
    AlCrSiN
    black
    4000
    0.4
    0.35
    1100ºC
    High Hard Material, steel, cast iron, etc
    HRC 65° coating
    nACo 3 Blue
    blue
    4500
    0.4
    0.45
    1200ºC
    Titanium Alloy, High-temperature Alloy,material, etc
    HSS
    nACo 3 Blue
    Other
    4500
    0.4
    0.45
    1200ºC

    Stainless steel
    Free Sample Test : Contact Us For Inquiry

    Product details:

    4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters

    Product Catalog:

    4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters

    Product Sizes:

    Specification
    Flute Dia.
    Flute Length
    Shank Dia.
    Overall length
    R1.5*6*3*50
    3
    6
    3
    50
    R1.5*6*3*75
    3
    6
    3
    75
    R1.5*6*3*100
    3
    6
    3
    100
    R0.5*2*4*50
    1
    2
    4
    50
    R0.75*3*4*50
    1.5
    3
    4
    50
    R1*4*4*50
    2
    4
    4
    50
    R1.25*5*4*50
    2.5
    5
    4
    50
    R1.5*6*4*50
    3
    6
    4
    50
    R1.75*7*4*50
    3.5
    7
    4
    50
    R2*8*4*50
    4
    8
    4
    50
    R2*8*4*75
    4
    8
    4
    75
    R2*8*4*100
    4
    8
    4
    100
    R0.5*2*4*75
    1
    2
    4
    75
    R0.75*3*4*75
    1.5
    3
    4
    75
    R1*4*4*75
    2
    4
    4
    75
    R1.25*5*4*75
    2.5
    5
    4
    75
    R1.5*6*4*75
    3
    6
    4
    75
    R2.5*10*5*50
    5
    10
    5
    50
    R2.5*10*5*75
    5
    10
    5
    75
    R2.5*10*5*100
    5
    10
    5
    100
    R0.5*2*6*50
    1
    2
    6
    50
    R0.75*3*6*50
    1.5
    3
    6
    50
    R1*4*6*50
    2
    4
    6
    50
    R1.25*5*6*50
    2.5
    5
    6
    50
    R1.5*6*6*50
    3
    6
    6
    50
    R2*8*6*50
    4
    8
    6
    50
    R2.5*10*6*50
    5
    10
    6
    50
    R3*12*6*50
    6
    12
    6
    50
    R3*12*6*75
    6
    12
    6
    75
    R3*12*6*100
    6
    12
    6
    100
    R3*12*6*150
    6
    12
    6
    150
    R3.5*14*8*60
    7
    14
    8
    60
    R4*16*8*60
    8
    16
    8
    60
    R4*16*8*75
    8
    16
    8
    75
    R4*16*8*100
    8
    16
    8
    100
    R4*16*8*150
    8
    16
    8
    150
    R4.5*18*10*75
    9
    18
    10
    75
    R5*20*10*75
    10
    20
    10
    75
    R5*20*10*100
    10
    20
    10
    100
    R5*20*10*150
    10
    20
    10
    150
    R5.5*22*12*75
    11
    22
    12
    75
    R6*24*12*75
    12
    24
    12
    75
    R6*24*12*100
    12
    24
    12
    100
    R6*24*12*150
    12
    24
    12
    150
    R7*28*14*80
    14
    28
    14
    80
    R7*28*14*100
    14
    28
    14
    100
    R7*28*14*150
    14
    28
    14
    150
    R8*32*16*100
    16
    32
    16
    100
    R8*32*16*150
    16
    32
    16
    150
    R9*36*18*100
    18
    36
    18
    100
    R9*36*18*150
    18
    36
    18
    150
    R10*40*20*100
    20
    40
    20
    100
    R10*40*20*150
    20
    40
    20
    150
    Remarks: The milling cutter model marked with color is a common model.

    Production Process:

    4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters

    Package & Shipping:

    4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters

    Our Advantages:
    Suitable for finishing,can achieve the mirror effect.
    coating increase surface gloss,and prolonging life.
    100% quality guarantee (ISO9001)
    Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
    100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.
    Our Company:
    4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters
