    Milling Cutter 4 Flute Ball Nose CNC Router Bit Carbide End Mill 45HRC R3 R4 R5 R6

    Ask Lasest Price
    Brand Name : KINGTOOLS
    Model Number : R1.5*6*3*50
    Certification : ISO 9001
    Price : $1-20
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 20000PCS PER MONTH
    Delivery Time : 7-15
    • Product Details
    • Company Profile

    Milling Cutter 4 Flute Ball Nose CNC Router Bit Carbide End Mill 45HRC R3 R4 R5 R6

    Milling Cutter 4 Flute Ball Nose Carbide End Mill 45HRC R3 R4 R5 R6 CNC


    Milling Cutter 4 Flute Ball Nose CNC Router Bit Carbide End Mill 45HRC R3 R4 R5 R6


    Specifications:

    Product Name
    Carbide Ball Nose End Mills
    Material
    100% New Raw Material Carbide
    Flute
    1 / 2 / 4 / 6 /7 /8 /9 /12 Flutes
    HRC
    45 / 55 / 58 / 60 / 65 /70
    Customized
    Our factory supports Size, Coating, Shape, Logo, Sample Test etc. customization.
    Coating Thickness
    2um-4um
    Shank Diameter
    1mm-20mm
    Overall Length
    50mm-200mm
    Application
    General-purpose operation Slotting, Drilling, Profiling
    Working Machine
    CNC (computer numeric controlled) tool and cutter grinder machines
    Work-piece material
    Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze etc.

    About Coatings:


    Endmill Grade
    Coating Name
    Color
    Hv
    μm
    Friction
    The MaxºC
    Application
    HRC 45° coating
    AlTiN
    black
    3300
    0.6
    0.7
    850ºC
    Suitable for General Steel
    HRC 50° coating
    AlTiN
    black
    3300
    0.6
    0.7
    850ºC
    Suitable for General Steel
    HRC 55° coating
    TiSiAlN
    bronzed
    3400
    0.5
    0.7
    900ºC
    General Steel,cast cast iron
    HRC 60° coating
    AlCrSiN
    black
    4000
    0.4
    0.35
    1100ºC
    High Hard Material, steel, cast iron, etc
    HRC 65° coating
    nACo 3 Blue
    blue
    4500
    0.4
    0.45
    1200ºC
    Titanium Alloy, High-temperature Alloy,material, etc
    HSS
    nACo 3 Blue
    Other
    4500
    0.4
    0.45
    1200ºC
    Stainless steel
    Free Sample Test : Contact Us For Inquiry

    Product Catalog:

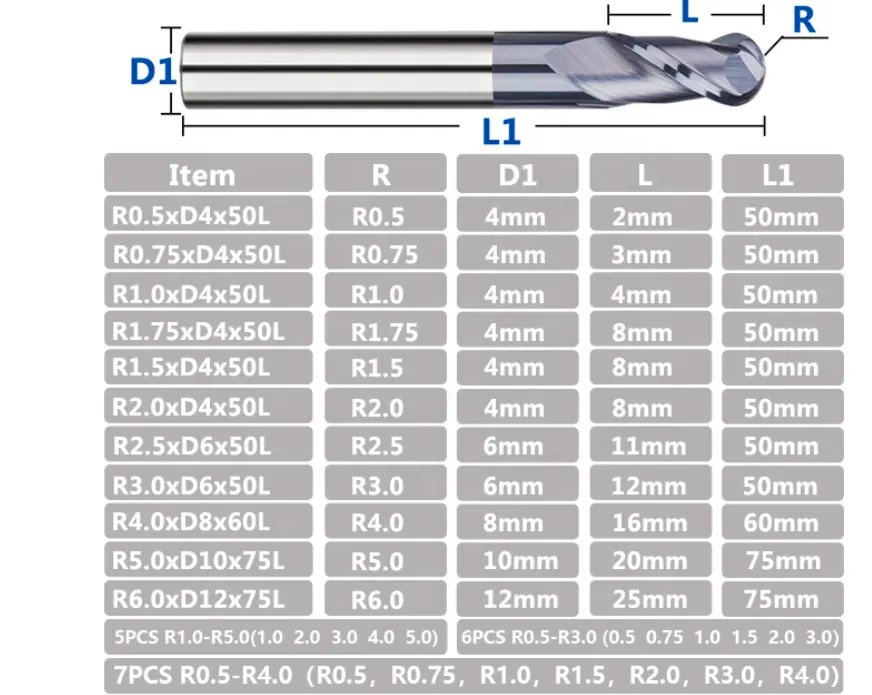

    Product Sizes:



    Product Aplication:



    Production Process:



    Package & Shipping:


    Our Advantages:
    Suitable for finishing,can achieve the mirror effect.
    coating increase surface gloss,and prolonging life.
    100% quality guarantee (ISO9001)
    Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
    100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.
    Our Company:
